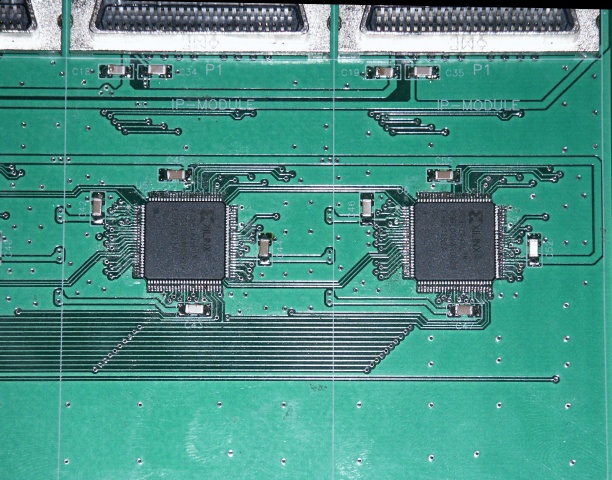

Did not get picts of whole board. Board consisted of an RCM3900 module, 10 LEDs, with +12, +5 and -12V switching power supplies all several amps. The board support 3 Industry Pack modules. This bus is implemented in 3 Xilinx XC95144XL CPLD's. |
 |

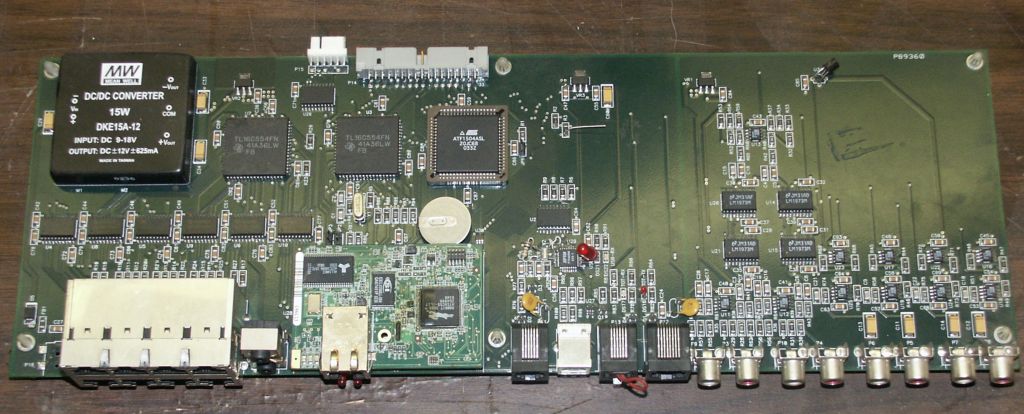

Rabbit RCM3200 CPU module. USB port, Infrared transmitter, 12 serial ports, CPLD, battery backup for RAM/RTC, DC/DC switching supply and linear regulators. Audio amplifiers and multiplexers. Designed for 19" rackmount case. |
  Layout:
Stan Buza |

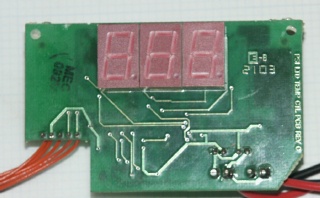

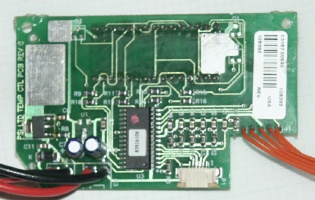

Temperature controller board, PIC16F870 CPU, 3-digit LED display, digital Temp Sensor, PWM Motor control, 5-key keypad |
 Layout: Stan Buza |

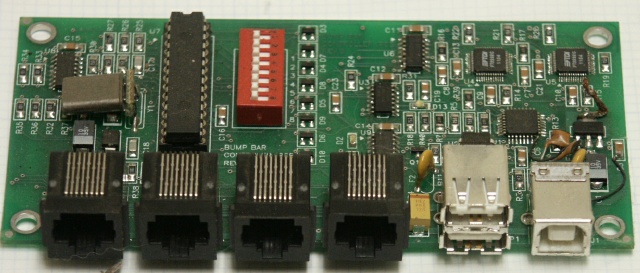

Remote Keypad interface, 4, 4x4 keypads, USB PC interface,
Internal USB hub, PIC16F870 CPU, Emulates 4 COM ports |
 Layout: Stan Buza |

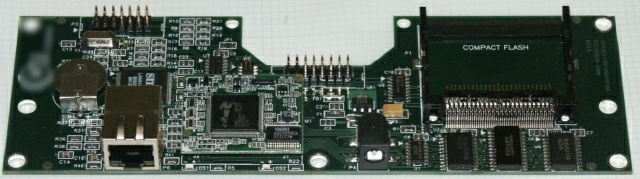

Rabbit RCM3400 CPU, 10/100 Ethernet, SPI interface, A/D, Compact Flash interface, battery backed RAM. |
 Layout: Stan Buza |
Point of Sale serial/Ethernet/Printer interface. RCM2200 CPU 3 serial ports. |
 Layout: Stan Buza |

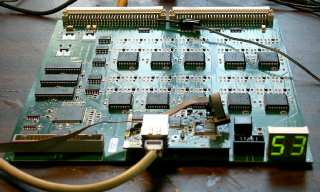

Language Lab Testing Board, RCM3200 CPU module, Motorola DSP56309 Signal Processor, 40-channel voice CODECS, IDE Interface, 2-digit LED display. 450 parts! |
 Layout: Stan
Buza |

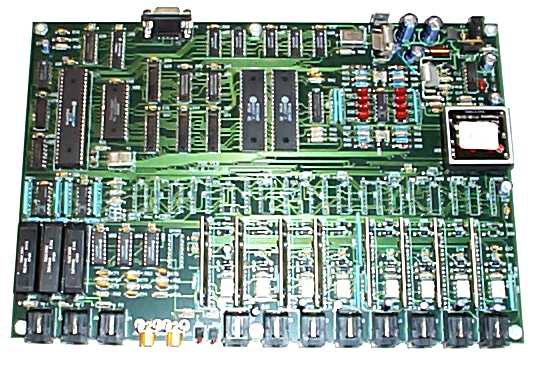

3 input line, 8 output line PBX, serial PC interface, Motorola MC68HC11 CPU, ring and tone generators, Caller ID decode and DTMF decoders. |
|
|
